Flash Insight
Kinetis SWD
Help

Flash Insight Supported Device Families

Device Family	Programming Interface	Help Page	Programmer	Status
ColdFire	EzPort	ColdFire EzPort Help	ColdFire-EzPort.dll	Active
Kinetis	SWD	Kinetis SWD Help	Kinetis-SWD.dll	Active
Kinetis	EzPort	Kinetis EzPort Help	Kinetis-EzPort.dll	Active
Generic	N/A	Flash Insight Help	N/A	Active
STM32	SWD	STM32 SWD Help	STM32-SWD.dll	In Development
NXP LPC2000	ISP	NXP LPC2000 ISP Help	NXP-LPC2000-ISP.dll	Legacy

Glossary

Big Endian

In a multi-byte value, the most significant bits are in the first byte of the value, the next most significant bits are in the next byte, etc.

ELF

Stands for Executable and Linkable Format is a standard object/executable file format.

Little Endian

In a multi-byte value, the least significant bits are in the first byte of the value, the next least significant bits are in the next byte, etc.

Gang Programmer

Provides an interface to perform programming operations on multiple devices simultaniously.

Programmer

An installable DLL (Dynamic Link Library) that provides the device specific programmer functionality.

Single Device Programmer

Provides an interface to perform various operations on a single device.

Overview

Flash Insight is an in circuit programmer that supports programming over almost any interface that uses 8 I/O lines or less. The user interface is supplied by the Flash Insight application while support for a specific device family and programming interface is supplied by an installable Programmer (Dynamic Link Library or DLL). This means that the user interface is consistent for all supported devices and the programmer (DLL) supplies any device specific functionality.

For devices that are programmed via the RS232 serial protocol any Windows COM port may be used given suitable signal level translation is provided. For other programming interfaces, FlashInsight uses the most suitable mode that's provided by FTDI Hi-Speed USB UART/FIFO ICs. These include the FT232H, FT2232H, and FT4232H. The FT4232H only supplies the MPSSE engine (which is used by many FlashInsight Programmers) on two of its four interfaces.

The Flash Insight Kinetis SWD programmer provides read, blank check, erase, program, verify, and run operations on all supported Kinetis devices.

The SWD protocol requires the MPSSE functionality provided by a suitable FTDI device to interface to the Kinetis chip.

File Formats

Flash Insight reads and writes a number of formats. As more device families are supported, more file formats will be added as necessary. The current supported file formats are: ELF, Motorola S-record, Intel Hex and binary.

ELF (Executable and Linkable Format) [extentsion: .elf - case insensitive]

ELF is a standard object and executable file format used by a number of build tools including GCC. It is a binary format that identifies the target machine and the endianness of the data contained in the file.

Motorola S-Record [extension: .srec - case insensitive]

Motorola S-record format is a hex-ASCII file format generally used for programming a device. Most build tools will provide utilities for generating an S-record file from an executable.

Intel Hex [extension: .hex - case insensitive]

Intel Hex format is a hex-ASCII file format generally used for programming a device. Most build tools will provide utilities for generating an Intel Hex file from an executable.

Binary

The binary format is assumed for any file without an extension defined for one of the above formats. It doesn't contain any location information so the destination is assumed to be the start of flash for the device in question. Most build tools will provide utilities for generating a binary file from an executable.

Electrical Interface

The Kinetis SWD programmer uses FTDI's MPSSE engine to control the programming process. See Overview for FTDI chips that implement the MPSSE engine.

System Components

Menu

File

Save Settings As...

Create a new named configuration under the currently selected programmer in the Configuration Tree.

Delete Settings

Delete the currently selected settings in the Configuration Tree. If the programmer (top level) name is selected, this menu item is disabled.

Exit

Exit the Flash Insight program.

View

Single Device Programmer

Select the Single Device Programmer. When this item is checked the Single Device Programmer is displayed in the right panel of Flash Insight.

Gang Programmer

Select the Gang Programmer. When this item is checked the Gang Programmer is displayed in the right panel of Flash Insight.

Help

Flash Insight

Go to the generic Flash Insight help web page.

Current Programmer

Go to the programmer specific help web page for the currently selected programmer.

Supported Device Families

Go to the Supported Device Families section of the generic help web page.

FlashInsight Download

Go to the FlashInsight Download web page.

Licenses...

Open the Licenses dialog which displays the currently installed components along with their related versions and build information and the type of installed license for each component. Also, buttons are provided to take you to the web page where you can buy licenses ("Buy License") and to install purchased licenses ("Install License").

When you buy licenses please be sure to save the web page displaying the purchased licenses for future reference. When you are ready to install a license, click the "Install License" button in the Help->Licenses dialog. The Install License dialog will be displayed. Copy the licenses you want to install and paste it into the License text box. After successful installation, the license type of the programmer corresponding to the installed license will be updated to reflect the installed license.

About...

Provides copyright information about Flash Insight. Clicking on the Tranaptic logo will take you to the Tranaptic website. For version information about Flash Insight see Licenses above.

Configuration Tree

The left panel of Flash Insight contains the Configuration Tree. At the top level the Configuration Tree shows the name of the programmer. This is also the default name under which settings are saved. Second level entries under the programmer name are project names that you enter when you use "Save Settings As..." from the File menu. The currently selected programmer is the one for which either the programmer (top level) is selected or one of the projects under it is selected.

Single Device Programmer

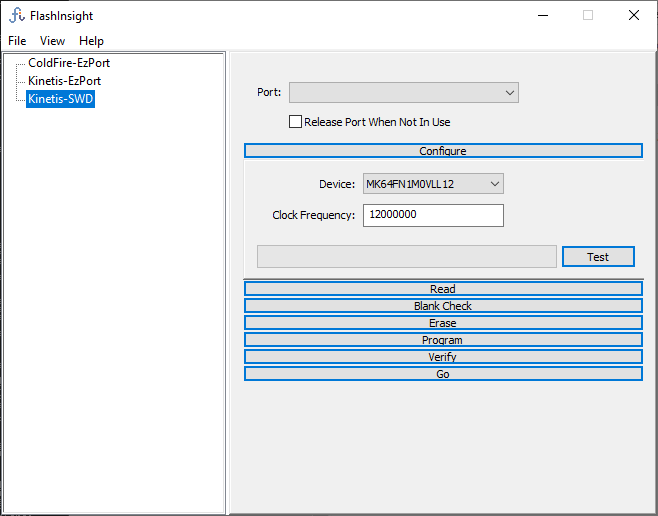

The Single Device Programmer is displayed in the right panel when Flash Insight is operating in Single Device mode. A screen capture of Flash Insight operating in Single Device mode is shown below.

The following operations are available in the Single Device Programmer:

Port

Select the programming port. If the programmer uses standard COM ports for programming, all available COM ports will be presented in the drop down list. If the programmer uses one of the FTDI modes, then only interfaces supporting the required mode will be listed.

The programming port selected in the Single Device programmer will be the first port used in the Gang programmer. The program configuration settings in the Single Device programmer are used for all Gang Programmer instances.

Release Port When Not In Use

Check this option when you want to use the programming port for other purposes when its not being used by FlashInsight. This is useful, for example, if the programming port is connected to a serial port on the target. USE THIS OPTION WITH CAUTION. I have encountered software that scans ports periodically causing interference with programmer operation.

System Components

Single Device Programmer

Configure

Device

Select the device that you intend to program from the supplied list. Only devices that support the SWD interface are listed.

Clock Frequency

Set the clock frequency for the main clock of the device. The supplied clock frequency is used to calculate the clock frequency used with the SWD interface.

Test (Button)

Click the Test button to perform a communications check with the Kinetis device once the interface has been configured.

Default Read Behaviour

Click the Browse button to select the file to store the data read from the connected device's memory. If the file already exists, you will be prompted to confirm overwriting of the file.

When you are ready to read the device's memory click the Read button. The progress bar to the left of the Read button will indicate the operation's progress.

Default Blank Check Behaviour

Click the Blank Check button to begin the blank check operation. The progress bar to the left of the Blank Check button will indicate the operation's progress.

Default Erase Behaviour

Select the type of erase operation you would like to perform:

• When Erase All is selected, the device's entire flash will be erased.
• When Blank Check and Erase is selected, a blank check will be performed and only non-blank sectors will be erased.
• When Erase List is selected, the sectors highlighted in the Erase List will be erased.
• To select several contiguous sectors, click on the first sector then hold down shift while clicking on the last sector of the block.
• To select/unselect individual sectors hold down the Control key while clicking on a sector.

When you are ready to erase the device's memory click the Erase button. The progress bar to the left of the Erase button will indicate the operation's progress.

Default Program Behaviour

Select the type of erase operation you would like to perform before programming the device:

• When Don't Erase is selected the device will not be erased and the device's current memory contents will be left intact.
• When Erase Using Erase List is selected, the erase list defined in the Erase dialog will be used to determine which sectors to Erase.
• When Blank Check and Erase None Blank Sectors is selected, a blank check is performed and non-blank sectors will be erased.
• When Erase All is selected, the entire device will be erased.

To verify the device's memory against the programming image after programming is complete, check "Verify After Programming". Verification is performed against the selected programming file.

To reset the device after programming and optional verification, check "Reset After Program/Verify".

Click the Browse button to find and select the file to program the device with. See File Formats to determine which file formats are supported and how they are determined.

When you are ready to program the device's memory click the Program button. The progress bar to the left of the Program button will indicate the operation's progress.

Default Verify Behaviour

Click the Browse button to find and select the file to verify the device's memory against. See File Formats to determine which file formats are supported and how they are determined.

When you are ready to verify the device's memory click the Verify button. The progress bar to the left of the Verify button will indicate the operation's progress.

Default Go Behaviour

Click the Go button to run the currently loaded firmware. Typically this will reset the device but it depends on the programming interface provided by the device.

Gang Programmer (Common to All Device Families)

The Gang Programmer is displayed in the right panel when Flash Insight is operating in Gang Programmer mode which allows you to program up to 16 devices simultaneously using the Program settings for Single Device mode. Only the port changes for each Gang Programmer instance. A screen capture of Flash Insight operating in Gang Programmer mode is shown below.

The first instance (upper left) uses the same port as the single device programmer.

Add Instance

To add another Gang programmer instance (up to a maximum of 16), click the Add button. You will need to set the Port before the new instance can be used.

Delete Instance

To delete a Gang programmer instance, click the Delete button. The instance will be deleted and the port which was assigned to the deleted instance can be used by another instance.

NOTES:

• You can't delete the last active programmer instance.
• Deleting the first programmer instance (upper left) will result in the single device programmer being assigned the port of what becomes the first programmer instance.

Program All

To program all devices connected to the Gang Programmer at once, click the Program button. Each Gang Programmer instance will attempt to program the attached target device. If an error occurs, an error message will be displayed in the Error Window of the Gang Programmer instance where the error occured.
